Submarine Cables

EPR Insulated AC Medium-voltage Submarine Cablepdf

Applications

These submarine cables are used for power transmission to offshore islands, oil platforms or to cross-rivers and lakes. Cable design based on the mayor national or international standards e.g. VDE, IEC and ICEA or according to customers design and standards.

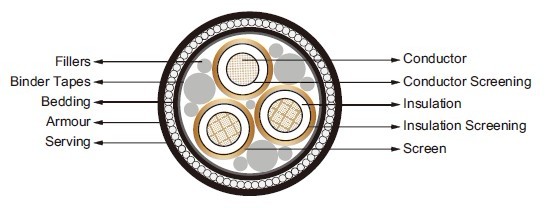

Construction

Submarine Cables

  • Conductor:Copper conductor, circular stranded compacted, water blocked.
  • Conductor Screening: Extruded semi-conductive compound.
  • Insulation: EPR.
  • Insulation Screening: Extruded semi-conductive compound.
  • Screen: Copper tapes.
  • Fillers: Polypropylene filler.
  • Separator: Binder tapes
  • Bedding Layer: Polypropylene strings.
  • Armour: Galvanized steel wires.
  • Serving: Hessian tapes, bituminous compound, polypropylene strings.

Electrical Data:

6/10(12) kV

Nominal Cross Section Area Capacitance Inductance Current Rating
mm² μF/mm mH/km A
35 0.27 0.37 166
50 0.30 0.35 197
70 0.34 0.33 242
95 0.38 0.32 289
120 0.42 0.31 328
150 0.45 0.30 367
185 0.49 0.29 402
240 0.55 0.28 469

12/20(24) kV

Nominal Cross Section Area Capacitance Inductance Current Rating
mm² μF/mm mH/km A
35 0.19 0.41 166
50 0.21 0.39 197
70 0.24 0.37 241
95 0.26 0.35 288
120 0.29 0.34 327
150 0.31 0.33 365
185 0.33 0.32 409
240 0.37 0.31 470

18/30(36) kV

Nominal Cross Section Area Capacitance Inductance Current Rating
mm² μF/mm mH/km A
50 0.17 0.43 196
70 0.18 0.41 241
95 0.20 0.39 287
120 0.22 0.37 325
150 0.23 0.36 364
185 0.25 0.35 406
240 0.28 0.33 467

Dimension and Weight:

6/10(12) kV

Nominal
Cross
Section Area
Nominal
Conductor
Diameter
Nominal
Insulation
Thickness
Nominal
Screen Cross
Section Area
Nominal
Bedding
Thickness
Nominal
Steel Wire
Diameter
Serving
Thickness
Overall
Diameter
Weight
mm² mm mm mm² mm mm mm mm kg/m
35 7.0 3.4 3x4 2.0 3.15 3.5 56 5.4
50 8.2 3.4 3x4 2.0 3.15 3.5 59 5.9
70 9.9 3.4 3x5.4 2.0 4.0 3.5 64 7.9
95 11.5 3.4 3x5.4 2.0 4.0 3.5 68 9.1
120 13.0 3.4 3x5.4 2.0 4.0 3.5 71 10.2
150 14.5 3.4 3x6 2.0 4.0 3.5 74 11.4
185 16.1 3.4 3x6 2.5 5.0 4.0 86 15.0
240 18.6 3.4 3x6 2.5 5.0 4.0 87 16.7

12/20(24) kV

Nominal
Cross
Section Area
Nominal
Conductor
Diameter
Nominal
Insulation
Thickness
Nominal
Screen Cross
Section Area
Nominal
Bedding
Thickness
Nominal
Steel Wire
Diameter
Serving
Thickness
Overall
Diameter
Weight
mm² mm mm mm² mm mm mm mm kg/m
35 7.0 5.5 3x6 2 3.15 3.5 65 6.8
50 8.2 5.5 3x6 2 3.15 3.5 68 7.4
70 9.9 5.5 3x6 2 4.0 3.5 73 9.5
95 11.5 5.5 3x6 2 4.0 3.5 77 10.7
120 13.0 5.5 3x6 2 4.0 3.5 80 11.8
150 14.5 5.5 3x6 2 4.0 3.5 83 13.0
185 16.1 5.5 3x8 2 5.0 4.0 90 16.2
240 18.6 5.5 3x8 2 5.0 4.0 95 18.5

18/30(36) kV

Nominal
Cross
Section Area
Nominal
Conductor
Diameter
Nominal
Insulation
Thickness
Nominal
Screen Cross
Section Area
Nominal
Bedding
Thickness
Nominal
Steel Wire
Diameter
Serving
Thickness
Overall
Diameter
Weight
mm² mm mm mm² mm mm mm mm kg/m
50 8.2 8.0 3x6 2 3.15 3.5 79 9.2
70 9.9 8.0 3x6 2 4.0 3.5 84 11.5
95 11.5 8.0 3x8 2 4.0 3.5 88 12.8
120 13.0 8.0 3x8 2 4.0 3.5 91 14.0
150 14.5 8.0 3x8 2 4.0 3.5 94 15.4
185 16.1 8.0 3x10 2 5.0 4.0 101 18.7
240 18.6 8.0 3x10 2 5.0 4.0 106 21.1
